P/N: ETI0005-1030 Rugged NEMA UPS

Part Number:
ETI0005-1030
3000 VA Rugged NEMA 12 UPS


Rugged Power Isolated UPS
3000 VA Rugged NEMA 12, Modular Power System

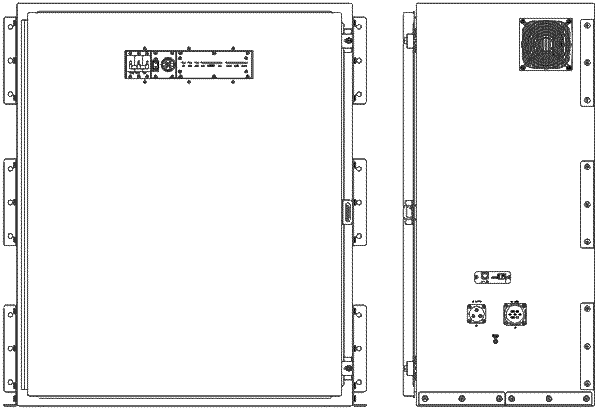

<br />ETI0005-1030 Standard Front Panel Layout

ETI0005-1030 Standard Front Panel and Side Panel Layout

The field proven Rugged Power UPS line is ideally suited for military,industrial and telecommunications applications requiring rugged rack or table mount and/orportable construction, high reliability, compact size and light weight design. The heavyduty chassis occupies minimal space while delivering up to 3000 VA of clean,uninterruptible power. The rounded metal corners and rugged handles, both front and rear,aid in safe handling. The optional mounting kit includes flanges and legs for eitherhorizontal or vertical positioning. Internally, all major components are well secured andelectrically insulated to prevent damage due to shock and vibration. An internaltransformer bay accommodates the input isolation transformer with provisions for bothdomestic and optional international voltages for ratings up to 3000 VA. The LED arrayskeep the operator informed as to the unit's status including load and battery levels. Thehigh intensity audible alarm can be heard in high noise environments, yet is easilyadjustable to suit quieter conditions. All controls and protective devices are brought to the front panel with critical switches or breakers guarded. Further, all front paneldevices are recessed to prevent damage or accidental operation. Both the input switch andisolation transformer provide double pole isolation for shipboard systems. Variousoptional power distribution controls are available which mount on the front panel orremotely.

The rear panel provides locking connectors for the input and output power. Multipleinput and output power panel options are available. A washable intake air filter and highcapacity ball bearing fan provide added protection in both controlled and hostileenvironments. The exhaust air is diverted out the front vents, or easily changed to ventout the sides or both. The external battery connector allows the safe and easy addition ofextra battery modules without having to shut the unit down. A frequency selection switchis available for those sites requiring 50 hertz output instead of the standard 60 hertz.The status D shell connector provides signals to interface with optional computersoftwareproviding loss of AC and low battery status as well as remote shut down capability.

Overall, the Rugged Power line is uniquely qualified for critical shipboard, vehicle, airborne or land based systems combining advanced modular design features with highly reliable construction

Technical Specifications
AC OUTPUT
Output voltage: 120 VAC true sinewave std, up to 600 VAC optional
Output rating: UPS 3000 VA
0.65-0.75 pf std, optional configurations to 18,000 VA
Non-linear load capacity: Up to 100% non-linear load capability w/o derating
Output voltage regulation: UPS ± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step)
Overload surge capacity: 110% for 10 minutes; 125% for 30 seconds
Harmonic distortion: Less than 5.0% into 100% non-linear load
Output frequency: UPS 60 or 50 Hz ± 2.5% synchronized to utility
60 or 50 Hz ± 1.0% w/ utility not available
Operational status Status, load and battery level LEDs, w/contacts
Adjustable level,+90 dB audible alarm w/on/off
AC INPUT
Input voltage selection: 120 VAC, optional up to 600 VAC, up to 440 Hz
Input voltage tolerance: UPS +15% -25% of nominal input rating
Input/output isolation: Up to 120 dB electrical noise attenuation
Input transient suppression: Complies with IEEE 587 and UL 1449
Input control/protection: Guarded 2 pole switch w/ fuse, optional breaker
Guarded cold start to turn on w/o AC present
Input power connection: AMP CPC Type XII locking, various options
BATTERY
Type: Maintenance free immobilized electrolyte,
Flame retardant materials (Oxygen Index 28+)
Battery life: Rated for continuous service life of 5 years
DC protection: Front panel mounted fuse, optional breaker
Battery expansion: Up to 24 hours w/ Battery Expansion Modules
DISTRIBUTION PANEL
Output circuits: One output standard, up to eight optional
Output control: Optional panel switches or breakers
Optional remote interlock ON/OFF control
Output receptacles: MS locking std, various options
MECHANICAL
Dimensions ( H x D x W ): 36 x 16 x 30 in (914 x 406 x 762 mm)
Alternate Mounting Options: Table, Wall, Floor, Portable, Horizontal/Vertical
Shipping weight: 215 lb. (98 kg) with lift handles front and rear
Audible noise: Less than 47 dB @ 5.0 ft., ANSI "A" scale
Cooling type: High capacity, positive pressure, forced air
Cooling air direction: Side intake, exhaust to opposite side
Air intake filter: Washable filter media, various porosities
ENVIRONMENTAL
Storage temperature: -13° to 131° F ambient (-25° to 55° C )
Operating temperature: 32° to 113° F ambient (0° to 45° C ),higher optional
Operating humidity: 0 to 95% relative humidity (non-condensing)
Operating elevation: Up to 15,000 ft (4,572 m), higher optionally
STANDARDS
United States: Meets UL-1778 standard for UPS equipment,
MIL STDs 810, 454 & 1399 Shock/Vib/Electrical
Canada: CSA C22.2 No. 107 UPS safety requirements
EMI Protection: EMI/RFI FCC, Class A, optional MIL STD 461
OPTIONAL ACCESSORIES
  Dual Source Input, Batteryless Operation,
Battery Expansion Unit, Automatic Battery Test,
Power Distribution Units, Software Interface
