Part Number: ETI0001-1037
Model: ETI0001-N1A9-F4IA/1.5+1.5IAEC
Rugged Rackmount Global
Isolated 3100 VA System with
1550 VA UPS Plus
1550 VA Electronic Conditioner
US Army and NATO Standard
Product WorldPower™ Accepts 85-270 VAC, 46-440 Hz Input
Isolated 1550 VA UPS PLUS an Additional
1550 VA Electronic Power Conditioner for a Total of 3100 VA
Cold Start Feature and Elapsed Time Indicator
Rugged Rack Mount, Modular Power System

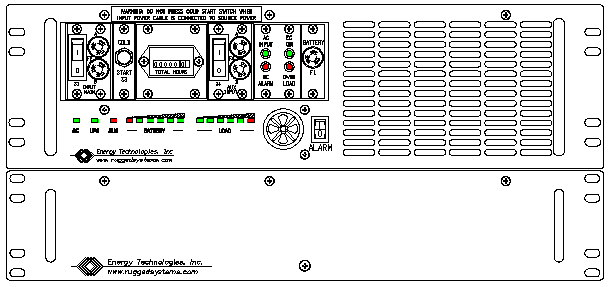

ETI0001-1037 Rugged Global UPS Standard Front Panel Layout
Shown with Standard 2U Battery Module

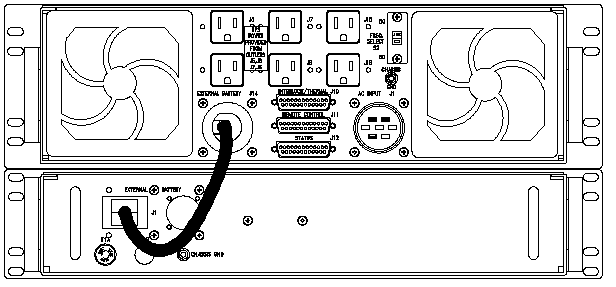

ETI0001-1037 Rugged Global UPS Standard Rear Panel Layout
The field proven WorldPower™ UPS line is ideally suited for military, industrial, computer and telecommunications applications requiring high reliability, rugged construction, compact size and light weight design. These units are equally suited for use in shipboard, airborne, vehicular, field deployed or fixed locations with controlled or uncontrolled environments. The "ETI0001-1037" was initially designed for the US Army and NATO for worldwide field deployment.
The heavy-duty electronics and battery chassis together occupy only 8.75" (5U) of rack space. They have rounded metal corners and rugged handles, aiding in safe handling. Internally, all major components are well secured and electrically insulated to prevent damage due to shock and vibration. This system is generally deployed in one of the optional weather proof Transit Cases with additional shock isolators and removable casters.
The internal shielded input transformer provides galvanic isolation with provisions for both domestic (115 VAC, CONUS) and international (230 VAC, OCONUS) input voltages. The input voltage selection is automatic without having to open the UPS enclosure. The unit also operates as a frequency converter, taking 46-440 hertz input and converting it to clean, uninterruptible 60 hertz power.
The LED arrays keep the operator informed as to the unit's status including load and battery levels. The Elapsed Time Indicator records the number of operational hours for records and scheduling preventative maintenance of attached equipment. The high intensity audible alarm can be heard in high noise environments, yet is easily adjustable to suit quieter conditions. All controls and protective devices are brought to front and rear panels with critical switches having finger guards. Further, all front panel devices are recessed to prevent damage or accidental operation.
The rear panel provides locking connectors for the input and output power. Multiple input and output power panel options are available. A removable and washable intake air filter and high capacity stainless steel ball bearing fan provide added protection in both controlled and hostile environments. The air is drawn from the rear and exhaust air is diverted out the front vent, with alternate air flow directions optional. The external battery connector allows the safe and easy addition of the standard or extra battery modules without having to shut the unit down. The batteries are maintenance free with immobilized electrolyte and are constructed of flame retardant materials. For more information, see the Battery Technology section. A frequency selection switch is available for those sites requiring 50 hertz output instead of the standard 60 hertz. The Status connector provides an interface with optional computer software providing loss of AC and low battery status as well as remote shut down capability.
See the Power Distribution Units section for a listing of stand alone PDUs. See the N5 Series section for a listing of UPS with integrated PDUs.
Overall, the WorldPower line is uniquely qualified for critical shipboard, vehicle, airborne or land based systems combining advanced modular design features with highly reliable construction.
| AC OUTPUT | |
| Output voltage: | 120 VAC true sinewave standard, up to 600 VAC optional |
| Output rating: UPS Section Electronic Power Conditioner |
1550 |
| Non-linear load capacity: | Up to 100% non-linear load capability w/o derating |
| Output voltage regulation: UPS | ± 3.0% static regulation of nominal ± 4.0% dynamic (0 to 50% load step) |
| Overload surge capacity: UPS | 110% for 10 minutes; 125% for 30 seconds |
| Harmonic distortion: UPS | Less than 5.0% into 100% non-linear load |
| Output frequency: UPS Electronic Power Conditioner |
60 or 50 Hz ± 2.5% synchronized to utility 60 or 50 Hz ± 1.0% w/ utility not available 400 or 1000 Hz output available as an option 60 or 50 Hz ± 2.5% synchronized to utility |
| Operational status | Status, load and battery LEDs, w/contacts Adjustable level,+90 dB audible alarm w/on/off |
| AC INPUT | |
| Input voltage selection: | Autoranging from nominal 115 VAC to 230 VAC |
| Input voltage tolerance: UPS | 85-270 VAC @ full load without using battery, to 70 VAC @ 75% load |
| Input frequency: | From 46 Hz to 70 Hz standard, optional to 440 Hz |
| Input/output isolation: | 3500 VA, up to 120 dB common mode, <5 mA leakage |
| Input transient suppression: | Complies with IEEE 587 and UL 1449 |
| Input control/protection: | Guarded 2 pole switch w/ fuse, optional breaker Guarded cold start to turn on w/o AC present |
| Input power connection: | AMP CPC Type XII, 7 pin, locking, various options |
| EXTERNAL BATTERY | |
| Battery type: | Maintenance free immobilized electrolyte, Flame retardant materials (Oxygen Index 28+) |
| Battery life: | Rated for continuous service life of 5 years |
| DC protection: | Front panel mounted fuse standard, breaker optional |
| Battery expansion: | Up to 24 hours w/ Battery Expansion Modules |
| DISTRIBUTION PANEL | |
| Output circuits: | Six outputs: four UPS, two electronic conditioned |
| Output control: | Optional panel switches or breakers Optional remote interlock ON/OFF control |
| Output receptacles: | NEMA 5-15R, 3 pin w/ locking cable bales, others optional |
| MECHANICAL | |
| Dimensions ( H x D x W ): UPS Battery Module |
5.25 (3U) x19.0 x 23.5 in (133
x 483 x 597 mm) 3.50 (2U) x19.0 x 23.5 in (89 x 483 x 597 mm) |
| Rack Slide Mount Patterns: | Jonathan, General Devices patterns, others optional |
| Alternate Mounting Options: | Table, Wall, Floor, Portable, Horizontal/Vertical |
| Unit weight: UPS Module Battery Module |
98 lb. (45 kg) UPS with lift handles front and
rear 102 lb. (46 kg) Battery with lift handles front and rear |
| Audible noise: | Less than 47 dB @ 5.0 ft., ANSI "A" scale |
| Cooling type: | High capacity, positive pressure, forced air |
| Cooling air direction: | Rear intake, exhaust to front, others optional |
| Air intake filter: | Washable filter media, others optional |
| ENVIRONMENTAL | |
| Storage temperature: | -13° to 140° F ambient (-25° to 60° C), lower/higher optional |
| Operating temperature: | 32° to 113° F ambient (0° to 45° C ), lower/ higher optional |
| Operating humidity: | 0 to 95% relative humidity (non-condensing) |
| Storage elevation: | Up to 40,000 ft (12,192 m) |
| Operating elevation: | Up to 15,000 ft (4,572 m), higher optional |
| STANDARDS | |
| United States: | Meets UL-1778
standard for UPS equipment, MIL STDs 167-1, 454, 810, 901D, 1399-300A & 2000 |
| Canada: | CSA C22.2 No. 107 UPS safety requirements |
| EMI Protection: | EMI/RFI FCC Part 15, Class A standard, MIL STD 461 optional |
| OPTIONAL ACCESSORIES | |
| Emergency Power Off, Alternate I/O Configurations, Dual Source Input, Battery Expansion, Batteryless Operation, Battery Charger/Conditioner, Power Distribution Units, Software Interface, Asynchronous serial COM port, 10BaseT Ethernet SNMP/HTTP port, Transport Cases | |
March 18
